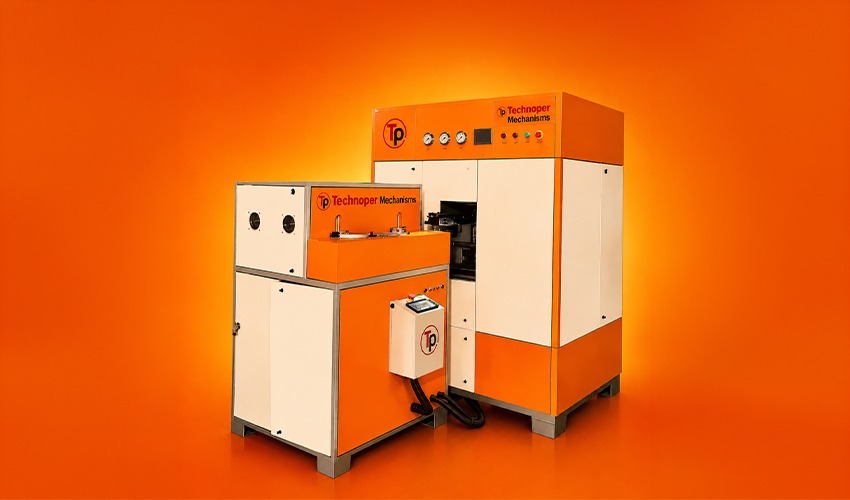

On Line PET Stretch Bottle Blowing Machine

Integrated Automation for Continuous PET Production

Technopet Machineries offers the On Line PET Stretch Bottle Blowing Machine designed for fully integrated production lines. It ensures seamless preform handling, precise stretching and continuous bottle formation for high-speed industrial manufacturing.

The system is engineered for synchronized operation with filling and processing lines, delivering stable output with minimal manual intervention. It supports large-scale production requirements with consistent bottle quality, energy efficiency and long-term operational reliability.

Product Specifications

The On Line PET Stretch Bottle Blowing Machine is designed for continuous automated production with high efficiency and precise control. It ensures stable performance in integrated manufacturing environments:

Production Max Output: 2400 BPH
Operation Type: Semi-Automatic with Online Ejection
Bottle Cavity & Size: 2 Nos, 100 ml to 1000 ml
Mould Locking System: Hydro-Pneumatic (HS)
Electrical Power Req: 70 HP Three phase supply
Preform Neck Cooling: 360 Degree, Individual guard
IR Heating: 5 Stations, 6 Lamps/Station
Weight: Approx 2000 Kgs

Bottle Ejection: Direct transfer to On-Line bay
Neck Size & Type: 28 mm, PCO/Three start/Short
Connecting Load: 16 KW
High Pressure Air: 25 Bar - 100 CFM - (40 HP)
Chilling Water: 3 Ton - 60 LPM - 10 deg. C.
Air Drier & Filtration: 40 bar/120 cfm
Voltage Stabilizer: 30 KVA - 3 phase - +/-1%
Dimensions: Blow 1100×1650x2280mm

Frequently Asked Questions

Have questions regarding our on-line PET stretch bottle machines? Find the answers below.

It works in a fully integrated production line, allowing continuous and automated bottle manufacturing.

It delivers approximately 3000-8000 bottles per hour depending on configuration.

It supports PET bottles ranging from 200 ml to 2000 ml.

Yes, it is ideal for high-volume production and continuous industrial operations.

On Line PET Stretch Bottle Blowing Machine

Integrated Automation for Continuous PET Production

Product Specifications

Frequently Asked Questions

What is the main advantage of an on-line machine?

What is the production capacity?

What bottle sizes can it produce?

Is it suitable for large-scale industries?
